Miro connector

1. Install the SDK

   Node.js

   npm install @scalekit-sdk/node

   Python

   pip install scalekit

   Full SDK reference: Node.js | Python

2. Set your credentials

   Add your Scalekit credentials to your .env file. Find values in app.scalekit.com > Developers > API Credentials.

   .env

   SCALEKIT_ENVIRONMENT_URL=<your-environment-url>
   SCALEKIT_CLIENT_ID=<your-client-id>
   SCALEKIT_CLIENT_SECRET=<your-client-secret>

3. Set up the connector

   Register your Miro credentials with Scalekit so it handles the token lifecycle. You do this once per environment.

   Dashboard setup steps

   Register your Scalekit environment with the Miro connector so Scalekit handles the OAuth flow and token lifecycle for your users. Follow every step below from start to finish — by the end you will have a working connection.

   1. Create a Miro app

      You need a Miro OAuth app to get the Client ID and Client Secret that Scalekit will use to authorize your users.

      Go to the Miro Developer Portal:

      • Open miro.com/app/settings/user-profile/apps in your browser.
      • Sign in with the Miro account you use to manage your integration.
      • After signing in, you land on the My Apps page.

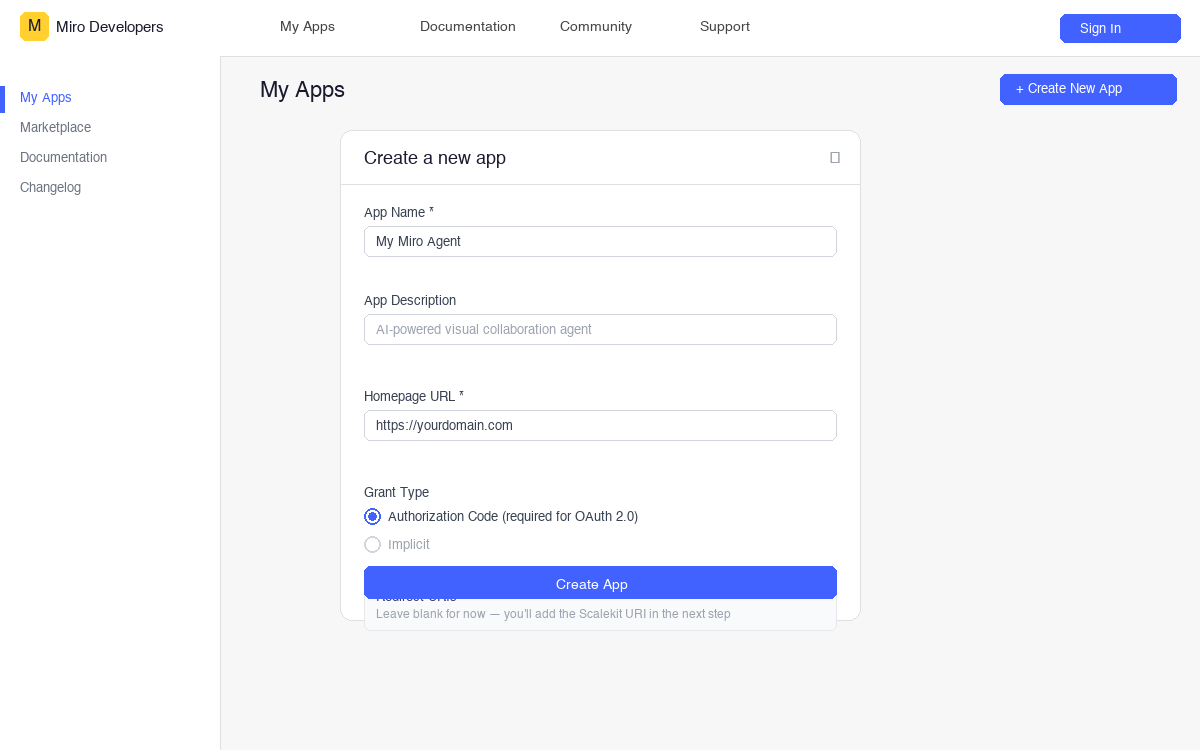

      Create a new app:

      • Click Create New App (top right of the page).

      • Fill in the form:

        Field	What to enter
        App Name	A recognizable name, e.g. My AI Collaboration Agent
        App Description	Brief description, e.g. AI agent for managing Miro boards
        Homepage URL	Your app’s public URL. For testing you can use https://localhost
        Grant Type	Select Authorization Code — this is required for OAuth 2.0

      • Leave Redirect URIs blank for now. You will add it in the next step.

      • Click Create App.

      After the app is created, Miro takes you to the app’s OAuth Settings page. Keep this tab open.

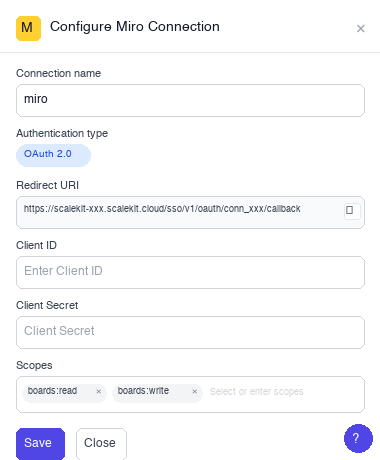

   2. Copy the redirect URI from Scalekit

      Scalekit gives you a callback URL that Miro will redirect users back to after they authorize your app. You need to register this URL in your Miro app.

      In the Scalekit dashboard:

      • Go to app.scalekit.com and sign in.
      • In the left sidebar, click AgentKit.
      • Click Create Connection.
      • Search for Miro and click Create.
      • A connection details panel opens. Find the Redirect URI field — it looks like:

        https://<YOUR_ENV>.scalekit.cloud/sso/v1/oauth/conn_<ID>/callback

      • Click the copy icon next to the Redirect URI to copy it to your clipboard.

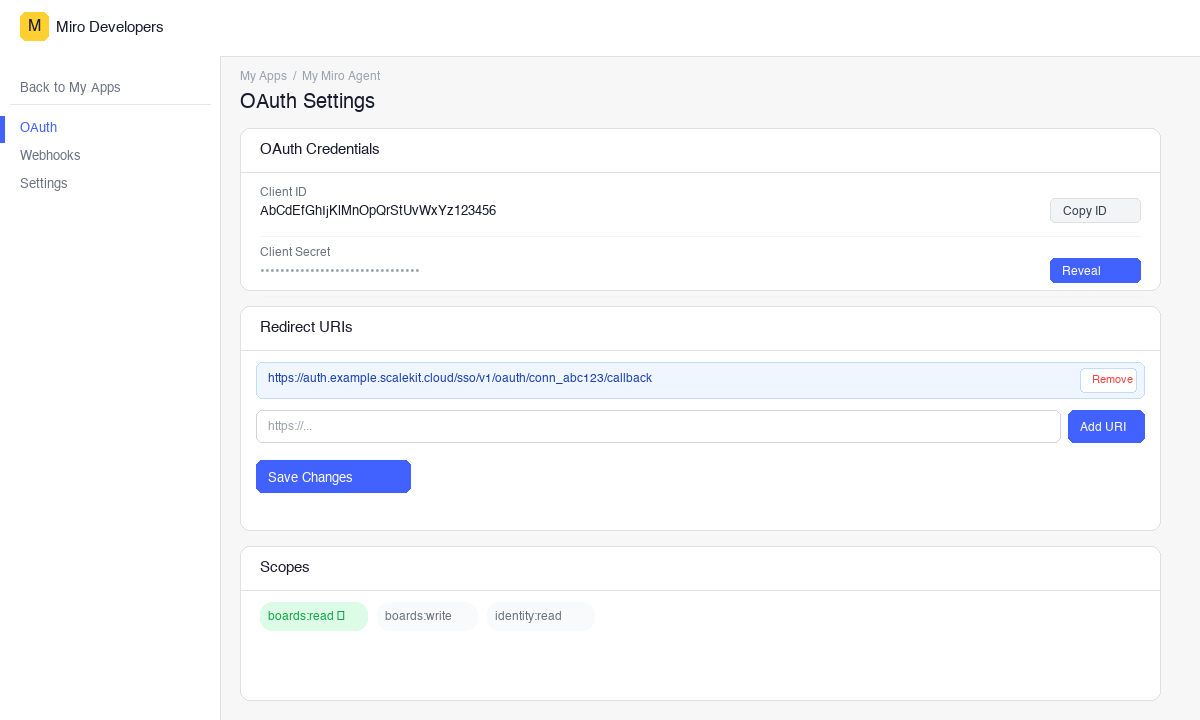

   3. Register the redirect URI and copy credentials

      Switch back to the Miro Developer Portal tab.

      • Make sure you are on the OAuth Settings page of your app.
      • Scroll to the Redirect URIs section.
      • Paste the redirect URI you copied from Scalekit into the input box and click Add URI.
      • Click Save Changes at the bottom of the page.

      Copy your credentials:

      • Scroll to OAuth Credentials at the top of the page.
      • Client ID — shown in plain text. Click Copy ID to copy it.
      • Client Secret — click Reveal to show the secret, then copy it.

      Keep both values in a password manager or secrets vault. You will enter them into Scalekit in the next step.



      Client secret is shown only once

      The Client Secret is masked after initial creation. If you lose it, you must generate a new one in the Miro app settings — this invalidates all existing connections until you update them in Scalekit.

      Redirect URI must match exactly

      The redirect URI must match character-for-character — including the https:// prefix and the full path. Any mismatch causes a redirect_uri_mismatch error during the OAuth flow.

   4. Configure permissions (scopes)

      Scopes control which Miro resources your app can access on behalf of each user. You select the scopes in Scalekit when saving your credentials.

      Scope	Access granted	Plan required
      boards:read	Read boards, members, and all board items	All plans
      boards:write	Create, update, and delete boards, members, and items	All plans
      identity:read	Read current user profile including email	All plans
      team:read	Read current team information	All plans
      auditlogs:read	Read audit logs for the organization	Enterprise only
      organizations:read	Read organization information	Enterprise only
      organizations:teams:read	Read teams within an organization	Enterprise only
      organizations:teams:write	Create and manage teams within an organization	Enterprise only
      projects:read	Read projects within teams	Enterprise only
      projects:write	Create and manage projects within teams	Enterprise only

      For most integrations, boards:read and boards:write are sufficient.

      Request only what you need

      Users see a list of requested permissions on the Miro authorization screen. Fewer scopes increases trust and approval rates. Only enable the scopes your integration actually uses.

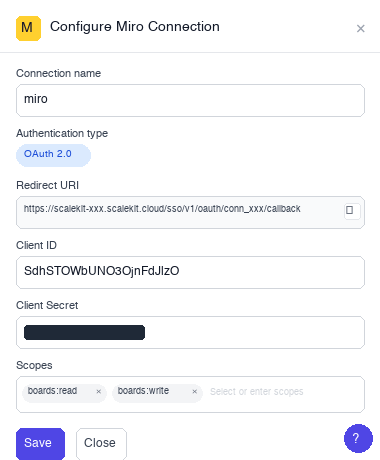

   5. Add credentials in Scalekit

      Switch back to the Scalekit dashboard tab.

      • Go to AgentKit > Connections and open the Miro connection you created in step 2.

      • Fill in the credentials form:

        Field	Value
        Client ID	Paste the Client ID from step 3
        Client Secret	Paste the Client Secret from step 3
        Permissions	Enter the scopes your app needs, e.g. boards:read boards:write

      • Click Save.



      Your Miro connection is now configured. Scalekit will use these credentials to run the OAuth flow whenever a user connects their Miro account.

      Scopes must match in both places

      The scopes entered here must match what you enable in your Miro app. A mismatch causes an invalid_scope error when users try to authorize. If you add more scopes later, update both your Miro app and this Scalekit connection.

4. Authorize and make your first call

   Node.js

   quickstart.ts

   import { ScalekitClient } from '@scalekit-sdk/node'
   import 'dotenv/config'

   const scalekit = new ScalekitClient(
     process.env.SCALEKIT_ENV_URL,
     process.env.SCALEKIT_CLIENT_ID,
     process.env.SCALEKIT_CLIENT_SECRET,
   )
   const actions = scalekit.actions

   const connector = 'miro'
   const identifier = 'user_123'

   // Generate an authorization link for the user
   const { link } = await actions.getAuthorizationLink({ connectionName: connector, identifier })
   console.log('Authorize Miro:', link)
   process.stdout.write('Press Enter after authorizing...')
   await new Promise(r => process.stdin.once('data', r))

   // Make your first call
   const result = await actions.executeTool({
     connector,
     identifier,
     toolName: 'miro_boards_list',
     toolInput: {},
   })
   console.log(result)

   Python

   quickstart.py

   import os
   from scalekit.client import ScalekitClient
   from dotenv import load_dotenv
   load_dotenv()

   scalekit_client = ScalekitClient(
       env_url=os.getenv("SCALEKIT_ENV_URL"),
       client_id=os.getenv("SCALEKIT_CLIENT_ID"),
       client_secret=os.getenv("SCALEKIT_CLIENT_SECRET"),
   )
   actions = scalekit_client.actions

   connection_name = "miro"
   identifier = "user_123"

   # Generate an authorization link for the user
   link_response = actions.get_authorization_link(
       connection_name=connection_name,
       identifier=identifier,
   )
   print("Authorize Miro:", link_response.link)
   input("Press Enter after authorizing...")

   # Make your first call
   result = actions.execute_tool(
       tool_input={},
       tool_name="miro_boards_list",
       connection_name=connection_name,
       identifier=identifier,
   )
   print(result)

What you can do

Connect this agent connector to let your agent:

• List board members, tags, mindmap nodes — Returns a list of members on a Miro board
• Get connector, image, group items — Retrieves details of a specific connector (line/arrow) on a Miro board
• Create shape, embed, frame — Creates a shape item on a Miro board
• Remove item tag, board member — Removes a tag from a specific item on a Miro board
• Invite team member — Invites a user to a team by email (Enterprise only)
• Delete team, item, sticky note — Deletes a team from an organization (Enterprise only)

Common workflows

Proxy API call

Node.js

// Example: list boards
const boards = await actions.request({
  connectionName: 'miro',
  identifier: 'user_123',
  path: '/v2/boards',
  method: 'GET',
});
console.log('Boards:', boards);

// Example: create a sticky note on a board
const stickyNote = await actions.request({
  connectionName: 'miro',
  identifier: 'user_123',
  path: '/v2/boards/YOUR_BOARD_ID/sticky_notes',
  method: 'POST',
  body: {
    data: { content: 'Hello from my AI agent!' },
    style: { fillColor: 'yellow' },
  },
});
console.log('Sticky note created:', stickyNote);

Python

# Example: list boards
boards = actions.request(
    connection_name='miro',
    identifier='user_123',
    path="/v2/boards",
    method="GET"
)
print("Boards:", boards)

# Example: create a sticky note on a board
sticky_note = actions.request(
    connection_name='miro',
    identifier='user_123',
    path="/v2/boards/YOUR_BOARD_ID/sticky_notes",
    method="POST",
    body={
        "data": {"content": "Hello from my AI agent!"},
        "style": {"fillColor": "yellow"},
    }
)
print("Sticky note created:", sticky_note)

Execute a tool

Node.js

const result = await actions.executeTool({
  connector: 'miro',
  identifier: 'user_123',
  toolName: 'miro_app_card_create',
  toolInput: {},
});
console.log(result);

Python

result = actions.execute_tool(
    connection_name='miro',
    identifier='user_123',
    tool_name='miro_app_card_create',
    tool_input={},
)
print(result)

Tool list

Use the exact tool names from the Tool list below when you call execute_tool. If you’re not sure which name to use, list the tools available for the current user first.

miro_app_card_create # Creates an app card item on a Miro board. 8 params ▾

Creates an app card item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

description string optional Description of the app card.

parent_id string optional ID of parent frame to nest this item inside.

position_x number optional X coordinate on the board.

position_y number optional Y coordinate on the board.

status string optional Status: disconnected | connected | disabled.

title string optional Title of the app card.

width number optional Width in board units.

miro_app_card_delete # Deletes an app card item from a Miro board. 2 params ▾

Deletes an app card item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_app_card_get # Retrieves an app card item from a Miro board. 2 params ▾

Retrieves an app card item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_app_card_update # Updates an existing app card item on a Miro board. 9 params ▾

Updates an existing app card item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

description string optional Description of the app card.

parent_id string optional ID of parent frame to nest this item inside.

position_x number optional X coordinate on the board.

position_y number optional Y coordinate on the board.

status string optional Status: disconnected | connected | disabled.

title string optional Title of the app card.

width number optional Width in board units.

miro_audit_logs_get # Retrieves audit logs for the organization (Enterprise only). Returns events for the specified date range (max 90 days). 5 params ▾

Retrieves audit logs for the organization (Enterprise only). Returns events for the specified date range (max 90 days).

Name Type Required Description

created_after string required Start of date range in ISO 8601.

created_before string required End of date range in ISO 8601.

cursor string optional Pagination cursor.

limit integer optional Max results per page (1-100).

sorting string optional Sort order: asc | desc.

miro_board_copy # Creates a copy of an existing Miro board, optionally in a different team. 2 params ▾

Creates a copy of an existing Miro board, optionally in a different team.

Name Type Required Description

board_id string required Unique identifier of the board to copy.

team_id string optional Team ID to copy the board into. Defaults to the original board's team.

miro_board_create # Creates a new Miro board. If no name is provided, Miro defaults to 'Untitled'. 4 params ▾

Creates a new Miro board. If no name is provided, Miro defaults to 'Untitled'.

Name Type Required Description

description string optional Board description (max 300 characters).

name string optional Board name (max 60 characters).

project_id string optional ID of the project/Space to add the board to.

team_id string optional ID of the team to create the board in.

miro_board_delete # Permanently deletes a Miro board and all its contents. 1 param ▾

Permanently deletes a Miro board and all its contents.

Name Type Required Description

board_id string required Unique identifier of the board to delete.

miro_board_export_create # Creates a board export job for eDiscovery (Enterprise only). Returns a job ID to poll for status. 4 params ▾

Creates a board export job for eDiscovery (Enterprise only). Returns a job ID to poll for status.

Name Type Required Description

board_ids string required JSON array of board IDs to export, e.g. ["id1","id2"]

org_id string required Organization ID.

request_id string required Unique request ID (UUID) to identify this export job.

format string optional Export format: pdf | csv.

miro_board_export_job_get # Gets the status of a board export job (Enterprise only). 2 params ▾

Gets the status of a board export job (Enterprise only).

Name Type Required Description

job_id string required Export job ID.

org_id string required Organization ID.

miro_board_export_job_results_get # Retrieves the results/download URLs of a completed board export job (Enterprise only). 2 params ▾

Retrieves the results/download URLs of a completed board export job (Enterprise only).

Name Type Required Description

job_id string required Export job ID.

org_id string required Organization ID.

miro_board_export_jobs_list # Lists all board export jobs for an organization (Enterprise only). 3 params ▾

Lists all board export jobs for an organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

cursor string optional Pagination cursor.

limit integer optional Max results.

miro_board_get # Retrieves details of a specific Miro board by its ID. 1 param ▾

Retrieves details of a specific Miro board by its ID.

Name Type Required Description

board_id string required Unique identifier of the Miro board.

miro_board_member_get # Retrieves details of a specific member on a Miro board. 2 params ▾

Retrieves details of a specific member on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

member_id string required Unique identifier of the board member.

miro_board_member_remove # Removes a member from a Miro board. 2 params ▾

Removes a member from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

member_id string required Unique identifier of the member to remove.

miro_board_member_update # Updates the role of a member on a Miro board. 3 params ▾

Updates the role of a member on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

member_id string required Unique identifier of the board member to update.

role string required New role for the member. Valid values: viewer, commenter, editor, coowner.

miro_board_members_list # Returns a list of members on a Miro board. 1 param ▾

Returns a list of members on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

miro_board_members_share # Shares a Miro board with one or more users by email address, assigning them a role. 3 params ▾

Shares a Miro board with one or more users by email address, assigning them a role.

Name Type Required Description

board_id string required Unique identifier of the board to share.

emails string required JSON array of email addresses to invite.

role string required Role to assign to the invited users. Valid values: viewer, commenter, editor, coowner.

miro_board_update # Updates the name or description of a Miro board. 3 params ▾

Updates the name or description of a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board to update.

description string optional New board description (max 300 characters).

name string optional New board name (max 60 characters).

miro_boards_list # Returns a list of Miro boards the authenticated user has access to. Supports filtering by team, project, owner, and search query. 0 params ▾

Returns a list of Miro boards the authenticated user has access to. Supports filtering by team, project, owner, and search query.

miro_card_create # Creates a card item on a Miro board. Cards can have a title, description, assignee, and due date. 10 params ▾

Creates a card item on a Miro board. Cards can have a title, description, assignee, and due date.

Name Type Required Description

board_id string required Unique identifier of the board.

assignee_id string optional User ID to assign the card to.

card_theme string optional Card theme color as hex code (e.g. #2d9bf0).

description string optional Description/body text of the card.

due_date string optional Due date in ISO 8601 format (e.g. 2024-12-31T23:59:59Z).

parent_id string optional ID of a parent frame to place the card inside.

position_x number optional X coordinate on the board (0 = center).

position_y number optional Y coordinate on the board (0 = center).

title string optional Title of the card.

width number optional Width of the card in board units.

miro_card_delete # Deletes a card item from a Miro board. 2 params ▾

Deletes a card item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the card to delete.

miro_card_get # Retrieves details of a specific card item on a Miro board. 2 params ▾

Retrieves details of a specific card item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the card item.

miro_card_update # Updates the content, assignment, due date, or position of a card on a Miro board. 8 params ▾

Updates the content, assignment, due date, or position of a card on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the card to update.

assignee_id string optional Updated assignee user ID.

description string optional Updated card description.

due_date string optional Updated due date in ISO 8601 format.

position_x number optional Updated X coordinate on the board.

position_y number optional Updated Y coordinate on the board.

title string optional Updated card title.

miro_connector_create # Creates a connector (line/arrow) between two existing items on a Miro board. 11 params ▾

Creates a connector (line/arrow) between two existing items on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

end_item_id string required ID of the item where the connector ends.

start_item_id string required ID of the item where the connector starts.

caption string optional Text label to display on the connector.

end_snap_to string optional Attachment point on the end item. Valid values: auto, top, right, bottom, left.

end_stroke_cap string optional End endpoint cap style. Valid values: none, arrow, filled_arrow, circle, filled_circle, diamond, filled_diamond, bar, stealth.

shape string optional Connector line style. Valid values: straight, elbowed, curved.

start_snap_to string optional Attachment point on the start item. Valid values: auto, top, right, bottom, left.

start_stroke_cap string optional Start endpoint cap style. Valid values: none, arrow, filled_arrow, circle, filled_circle, diamond, filled_diamond, bar, stealth.

stroke_color string optional Line color as hex code.

stroke_width string optional Line thickness as a string number.

miro_connector_delete # Deletes a connector (line/arrow) from a Miro board. 2 params ▾

Deletes a connector (line/arrow) from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

connector_id string required Unique identifier of the connector to delete.

miro_connector_get # Retrieves details of a specific connector (line/arrow) on a Miro board. 2 params ▾

Retrieves details of a specific connector (line/arrow) on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

connector_id string required Unique identifier of the connector.

miro_connector_update # Updates the style, shape, or endpoints of a connector on a Miro board. 7 params ▾

Updates the style, shape, or endpoints of a connector on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

connector_id string required Unique identifier of the connector to update.

caption string optional Updated text label on the connector.

end_stroke_cap string optional Updated end endpoint cap style (e.g. arrow, none, filled_arrow).

shape string optional Updated line style. Valid values: straight, elbowed, curved.

stroke_color string optional Updated line color as hex code.

stroke_width string optional Updated line thickness as a string number.

miro_connectors_list # Returns all connector (line/arrow) items on a Miro board. 2 params ▾

Returns all connector (line/arrow) items on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

cursor string optional Cursor token from a previous response for pagination.

miro_data_classification_board_get # Retrieves the data classification label for a specific board (Enterprise only). 3 params ▾

Retrieves the data classification label for a specific board (Enterprise only).

Name Type Required Description

board_id string required Unique identifier of the board.

org_id string required Organization ID.

team_id string required Team ID.

miro_data_classification_board_set # Sets the data classification label for a specific board (Enterprise only). 4 params ▾

Sets the data classification label for a specific board (Enterprise only).

Name Type Required Description

board_id string required Unique identifier of the board.

label_id string required Classification label ID.

org_id string required Organization ID.

team_id string required Team ID.

miro_data_classification_org_get # Retrieves data classification label settings for the organization (Enterprise only). 1 param ▾

Retrieves data classification label settings for the organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

miro_data_classification_team_get # Retrieves data classification settings for a team (Enterprise only). 2 params ▾

Retrieves data classification settings for a team (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

miro_document_create # Creates a document item on a Miro board from a publicly accessible URL. 8 params ▾

Creates a document item on a Miro board from a publicly accessible URL.

Name Type Required Description

board_id string required Unique identifier of the board.

url string required Publicly accessible URL of the document.

height number optional Height in board units.

parent_id string optional ID of parent frame to nest this item inside.

position_x number optional X coordinate on the board.

position_y number optional Y coordinate on the board.

title string optional Title of the document item.

width number optional Width in board units.

miro_document_delete # Deletes a document item from a Miro board. 2 params ▾

Deletes a document item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_document_get # Retrieves a document item from a Miro board. 2 params ▾

Retrieves a document item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_document_update # Updates an existing document item on a Miro board. 9 params ▾

Updates an existing document item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

height number optional Height in board units.

parent_id string optional ID of parent frame to nest this item inside.

position_x number optional X coordinate on the board.

position_y number optional Y coordinate on the board.

title string optional Title of the document item.

url string optional New URL for the document.

width number optional Width in board units.

miro_embed_create # Creates an embed item on a Miro board from an oEmbed-compatible URL (YouTube, Vimeo, etc.). 9 params ▾

Creates an embed item on a Miro board from an oEmbed-compatible URL (YouTube, Vimeo, etc.).

Name Type Required Description

board_id string required Unique identifier of the board.

url string required URL of the content to embed (oEmbed-compatible).

height number optional Height in board units.

mode string optional Embed mode: inline | modal.

parent_id string optional ID of parent frame to nest this item inside.

position_x number optional X coordinate on the board.

position_y number optional Y coordinate on the board.

preview_url string optional URL of preview image to display.

width number optional Width in board units.

miro_embed_delete # Deletes an embed item from a Miro board. 2 params ▾

Deletes an embed item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_embed_get # Retrieves an embed item from a Miro board. 2 params ▾

Retrieves an embed item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_embed_update # Updates an existing embed item on a Miro board. 10 params ▾

Updates an existing embed item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

height number optional Height in board units.

mode string optional Embed mode: inline | modal.

parent_id string optional ID of parent frame to nest this item inside.

position_x number optional X coordinate on the board.

position_y number optional Y coordinate on the board.

preview_url string optional URL of preview image to display.

url string optional New embed URL.

width number optional Width in board units.

miro_frame_create # Creates a frame item on a Miro board. Frames group and organize other board items. 7 params ▾

Creates a frame item on a Miro board. Frames group and organize other board items.

Name Type Required Description

board_id string required Unique identifier of the board.

fill_color string optional Background fill color as hex code (e.g. #ffffffff for transparent).

height number optional Height of the frame in board units.

position_x number optional X coordinate on the board (0 = center).

position_y number optional Y coordinate on the board (0 = center).

title string optional Title displayed at the top of the frame.

width number optional Width of the frame in board units.

miro_frame_delete # Deletes a frame item from a Miro board. 2 params ▾

Deletes a frame item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the frame to delete.

miro_frame_get # Retrieves details of a specific frame item on a Miro board. 2 params ▾

Retrieves details of a specific frame item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the frame item.

miro_frame_update # Updates the title, style, or position of a frame on a Miro board. 8 params ▾

Updates the title, style, or position of a frame on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the frame to update.

fill_color string optional Updated background fill color as hex code.

height number optional Updated height in board units.

position_x number optional Updated X coordinate on the board.

position_y number optional Updated Y coordinate on the board.

title string optional Updated frame title.

width number optional Updated width in board units.

miro_group_create # Creates a group of items on a Miro board. Items in a group move together. 2 params ▾

Creates a group of items on a Miro board. Items in a group move together.

Name Type Required Description

board_id string required Unique identifier of the board.

item_ids string required JSON array of item IDs to group, e.g. ["id1","id2"]

miro_group_delete # Deletes a group from a Miro board (items remain but are ungrouped). 2 params ▾

Deletes a group from a Miro board (items remain but are ungrouped).

Name Type Required Description

board_id string required Unique identifier of the board.

group_id string required Unique identifier of the group.

miro_group_items_get # Retrieves a group and its items from a Miro board. 2 params ▾

Retrieves a group and its items from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

group_id string required Unique identifier of the group.

miro_groups_list # Lists all item groups on a Miro board. 2 params ▾

Lists all item groups on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

cursor string optional Pagination cursor from previous response.

miro_image_create # Creates an image item on a Miro board from a publicly accessible URL. 9 params ▾

Creates an image item on a Miro board from a publicly accessible URL.

Name Type Required Description

board_id string required Unique identifier of the board.

url string required Publicly accessible URL of the image.

height number optional Height of the image in board units.

parent_id string optional ID of a parent frame to place the image inside.

position_x number optional X coordinate on the board (0 = center).

position_y number optional Y coordinate on the board (0 = center).

rotation number optional Rotation angle in degrees.

title string optional Display name/title for the image item.

width number optional Width of the image in board units.

miro_image_delete # Deletes an image item from a Miro board. 2 params ▾

Deletes an image item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the image item to delete.

miro_image_get # Retrieves details of a specific image item on a Miro board. 2 params ▾

Retrieves details of a specific image item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the image item.

miro_image_update # Updates the URL, title, position, or size of an image item on a Miro board. 8 params ▾

Updates the URL, title, position, or size of an image item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the image item to update.

position_x number optional Updated X coordinate on the board.

position_y number optional Updated Y coordinate on the board.

rotation number optional Updated rotation angle in degrees.

title string optional Updated title for the image.

url string optional Updated image URL.

width number optional Updated width in board units.

miro_item_delete # Deletes a specific item from a Miro board. 2 params ▾

Deletes a specific item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item to delete.

miro_item_get # Retrieves details of a specific item on a Miro board by its item ID. 2 params ▾

Retrieves details of a specific item on a Miro board by its item ID.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_item_tag_attach # Attaches an existing tag to a specific item on a Miro board. 3 params ▾

Attaches an existing tag to a specific item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item to attach the tag to.

tag_id string required Unique identifier of the tag to attach.

miro_item_tag_remove # Removes a tag from a specific item on a Miro board. Does not delete the tag from the board. 3 params ▾

Removes a tag from a specific item on a Miro board. Does not delete the tag from the board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

tag_id string required Unique identifier of the tag to remove from the item.

miro_item_tags_get # Returns all tags attached to a specific item on a Miro board. 2 params ▾

Returns all tags attached to a specific item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_items_bulk_create # Creates up to 20 board items in a single transactional request. Pass a JSON array of item objects as `items`. Each object must have a `type` field (sticky_note, text, shape, card, image, frame, etc.) and appropriate data. 2 params ▾

Creates up to 20 board items in a single transactional request. Pass a JSON array of item objects as `items`. Each object must have a `type` field (sticky_note, text, shape, card, image, frame, etc.) and appropriate data.

Name Type Required Description

board_id string required Unique identifier of the board.

items string required JSON array of item objects, each with "type" and item-specific fields.

miro_items_list # Returns all items on a Miro board. Optionally filter by item type. 1 param ▾

Returns all items on a Miro board. Optionally filter by item type.

Name Type Required Description

board_id string required Unique identifier of the board.

miro_mindmap_node_create # Creates a mind map node on a Miro board (experimental API). Omit parent_node_id for the root node. 3 params ▾

Creates a mind map node on a Miro board (experimental API). Omit parent_node_id for the root node.

Name Type Required Description

board_id string required Unique identifier of the board.

node_value string required Text content of the mind map node.

parent_node_id string optional ID of parent mind map node (omit for root node).

miro_mindmap_node_delete # Deletes a mind map node and all its children from a Miro board (experimental API). 2 params ▾

Deletes a mind map node and all its children from a Miro board (experimental API).

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_mindmap_node_get # Retrieves a specific mind map node from a Miro board (experimental API). 2 params ▾

Retrieves a specific mind map node from a Miro board (experimental API).

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_mindmap_nodes_list # Lists all mind map nodes on a Miro board (experimental API). 2 params ▾

Lists all mind map nodes on a Miro board (experimental API).

Name Type Required Description

board_id string required Unique identifier of the board.

cursor string optional Pagination cursor from previous response.

miro_oembed_get # Returns oEmbed data for a Miro board URL so it can be embedded as a live iframe in external sites. 4 params ▾

Returns oEmbed data for a Miro board URL so it can be embedded as a live iframe in external sites.

Name Type Required Description

url string required Full URL of the Miro board.

format string optional Response format: json (default) or xml.

maxheight integer optional Maximum embed height in pixels.

maxwidth integer optional Maximum embed width in pixels.

miro_org_get # Retrieves information about the organization (Enterprise only). 1 param ▾

Retrieves information about the organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

miro_org_member_get # Retrieves a specific member of an organization (Enterprise only). 2 params ▾

Retrieves a specific member of an organization (Enterprise only).

Name Type Required Description

member_id string required Member ID.

org_id string required Organization ID.

miro_org_members_list # Lists all members of an organization (Enterprise only). 5 params ▾

Lists all members of an organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

cursor string optional Pagination cursor.

emails string optional Comma-separated list of emails to filter by.

limit integer optional Max results per page.

role string optional Filter by role: admin | member.

miro_project_create # Creates a project (space) in a team (Enterprise only). 4 params ▾

Creates a project (space) in a team (Enterprise only).

Name Type Required Description

name string required Project name.

org_id string required Organization ID.

team_id string required Team ID.

description string optional Project description.

miro_project_delete # Deletes a project from a team (Enterprise only). 3 params ▾

Deletes a project from a team (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

project_id string required Project ID.

team_id string required Team ID.

miro_project_get # Retrieves a specific project (Enterprise only). 3 params ▾

Retrieves a specific project (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

project_id string required Project ID.

team_id string required Team ID.

miro_project_member_add # Adds a member to a project (Enterprise only). 5 params ▾

Adds a member to a project (Enterprise only).

Name Type Required Description

member_id string required Member ID to add.

org_id string required Organization ID.

project_id string required Project ID.

team_id string required Team ID.

role string optional Role: editor | commenter | viewer.

miro_project_member_delete # Removes a member from a project (Enterprise only). 4 params ▾

Removes a member from a project (Enterprise only).

Name Type Required Description

member_id string required Member ID.

org_id string required Organization ID.

project_id string required Project ID.

team_id string required Team ID.

miro_project_members_list # Lists members of a project (Enterprise only). 5 params ▾

Lists members of a project (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

project_id string required Project ID.

team_id string required Team ID.

cursor string optional Pagination cursor.

limit integer optional Max results.

miro_projects_list # Lists all projects in a team (Enterprise only). 4 params ▾

Lists all projects in a team (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

cursor string optional Pagination cursor.

limit integer optional Max results.

miro_shape_create # Creates a shape item on a Miro board. Shapes can contain text and support rich styling. 14 params ▾

Creates a shape item on a Miro board. Shapes can contain text and support rich styling.

Name Type Required Description

board_id string required Unique identifier of the board.

shape string required Shape type. Valid values: rectangle, round_rectangle, circle, triangle, rhombus, parallelogram, trapezoid, pentagon, hexagon, octagon, star, cross, right_arrow, left_right_arrow, cloud.

content string optional Text content inside the shape (supports simple HTML).

fill_color string optional Background fill color as hex code (e.g. #ff0000) or name.

font_size string optional Font size for text inside the shape as a string number.

height number optional Height of the shape in board units.

parent_id string optional ID of a parent frame to place the shape inside.

position_x number optional X coordinate on the board (0 = center).

position_y number optional Y coordinate on the board (0 = center).

rotation number optional Rotation angle in degrees.

stroke_color string optional Border/stroke color as hex code.

stroke_width string optional Border stroke width as a string number.

text_align string optional Horizontal text alignment. Valid values: left, center, right.

width number optional Width of the shape in board units.

miro_shape_delete # Deletes a shape item from a Miro board. 2 params ▾

Deletes a shape item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the shape to delete.

miro_shape_get # Retrieves details of a specific shape item on a Miro board. 2 params ▾

Retrieves details of a specific shape item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the shape item.

miro_shape_update # Updates the content, style, or position of a shape item on a Miro board. 11 params ▾

Updates the content, style, or position of a shape item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the shape to update.

content string optional Updated text content inside the shape.

fill_color string optional Updated fill color as hex code.

height number optional Updated height in board units.

parent_id string optional ID of a parent frame to move the shape into.

position_x number optional Updated X coordinate on the board.

position_y number optional Updated Y coordinate on the board.

shape string optional Updated shape type (e.g. rectangle, circle, triangle).

stroke_color string optional Updated stroke/border color as hex code.

width number optional Updated width in board units.

miro_sticky_note_create # Creates a sticky note item on a Miro board. 10 params ▾

Creates a sticky note item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

content string optional Text content of the sticky note (supports simple HTML tags).

fill_color string optional Background color. Valid values: gray, light_yellow, yellow, orange, light_green, green, dark_green, cyan, light_pink, pink, violet, red, light_blue, blue, dark_blue, black, white.

parent_id string optional ID of a parent frame to place the sticky note inside.

position_x number optional X coordinate on the board (0 = center).

position_y number optional Y coordinate on the board (0 = center).

shape string optional Shape of the sticky note. Valid values: square, rectangle.

text_align string optional Horizontal text alignment. Valid values: left, center, right.

text_align_vertical string optional Vertical text alignment. Valid values: top, middle, bottom.

width number optional Width of the sticky note in board units.

miro_sticky_note_delete # Deletes a sticky note from a Miro board. 2 params ▾

Deletes a sticky note from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the sticky note to delete.

miro_sticky_note_get # Retrieves details of a specific sticky note on a Miro board. 2 params ▾

Retrieves details of a specific sticky note on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the sticky note item.

miro_sticky_note_update # Updates the content, style, or position of a sticky note on a Miro board. 10 params ▾

Updates the content, style, or position of a sticky note on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the sticky note to update.

content string optional Updated text content of the sticky note.

fill_color string optional Updated background color (e.g. yellow, blue, pink).

parent_id string optional ID of a parent frame to move the sticky note into.

position_x number optional Updated X coordinate on the board.

position_y number optional Updated Y coordinate on the board.

shape string optional Updated shape. Valid values: square, rectangle.

text_align string optional Updated horizontal text alignment: left, center, right.

width number optional Updated width of the sticky note.

miro_tag_create # Creates a tag on a Miro board. Tags can be attached to items to categorize them. 3 params ▾

Creates a tag on a Miro board. Tags can be attached to items to categorize them.

Name Type Required Description

board_id string required Unique identifier of the board.

title string required Tag text (max 120 characters, must be unique on the board).

fill_color string optional Tag color. Valid values: red, light_green, cyan, yellow, magenta, green, blue, gray, violet, dark_green, dark_blue, black.

miro_tag_delete # Deletes a tag from a Miro board. Detaches the tag from all items it was attached to. 2 params ▾

Deletes a tag from a Miro board. Detaches the tag from all items it was attached to.

Name Type Required Description

board_id string required Unique identifier of the board.

tag_id string required Unique identifier of the tag to delete.

miro_tag_get # Retrieves details of a specific tag on a Miro board. 2 params ▾

Retrieves details of a specific tag on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

tag_id string required Unique identifier of the tag.

miro_tag_update # Updates the title or color of a tag on a Miro board. 4 params ▾

Updates the title or color of a tag on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

tag_id string required Unique identifier of the tag to update.

fill_color string optional Updated tag color (e.g. red, blue, green, yellow).

title string optional Updated tag text (max 120 characters, must be unique on the board).

miro_tags_list # Returns all tags on a Miro board. 1 param ▾

Returns all tags on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

miro_team_create # Creates a new team in an organization (Enterprise only). 3 params ▾

Creates a new team in an organization (Enterprise only).

Name Type Required Description

name string required Team name.

org_id string required Organization ID.

description string optional Team description.

miro_team_delete # Deletes a team from an organization (Enterprise only). 2 params ▾

Deletes a team from an organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

miro_team_get # Retrieves a specific team in an organization (Enterprise only). 2 params ▾

Retrieves a specific team in an organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

miro_team_member_delete # Removes a member from a team (Enterprise only). 3 params ▾

Removes a member from a team (Enterprise only).

Name Type Required Description

member_id string required Member ID.

org_id string required Organization ID.

team_id string required Team ID.

miro_team_member_get # Retrieves a specific member of a team (Enterprise only). 3 params ▾

Retrieves a specific member of a team (Enterprise only).

Name Type Required Description

member_id string required Member ID.

org_id string required Organization ID.

team_id string required Team ID.

miro_team_member_invite # Invites a user to a team by email (Enterprise only). 4 params ▾

Invites a user to a team by email (Enterprise only).

Name Type Required Description

email string required User email.

org_id string required Organization ID.

team_id string required Team ID.

role string optional Role: admin | member | guest.

miro_team_member_update # Updates the role of a team member (Enterprise only). 4 params ▾

Updates the role of a team member (Enterprise only).

Name Type Required Description

member_id string required Member ID.

org_id string required Organization ID.

role string required New role: admin | member | guest.

team_id string required Team ID.

miro_team_members_list # Lists members of a team (Enterprise only). 4 params ▾

Lists members of a team (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

cursor string optional Pagination cursor.

limit integer optional Max results.

miro_team_settings_get # Retrieves settings for a team (Enterprise only). 2 params ▾

Retrieves settings for a team (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

miro_team_settings_update # Updates settings for a team (Enterprise only). 4 params ▾

Updates settings for a team (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

copy_access_level string optional Who can copy boards: team_only | company | anyone.

sharing_policy string optional Board sharing policy: team_only | company | public.

miro_team_update # Updates a team's name or description (Enterprise only). 4 params ▾

Updates a team's name or description (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

description string optional New description.

name string optional New team name.

miro_teams_list # Lists all teams in an organization (Enterprise only). 3 params ▾

Lists all teams in an organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

cursor string optional Pagination cursor.

limit integer optional Max results per page.

miro_text_create # Creates a text item on a Miro board. 11 params ▾

Creates a text item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

content string required Text content (supports HTML tags).

color string optional Text color as hex code.

fill_color string optional Background color as hex code.

font_size string optional Font size as a string number (e.g. '14').

parent_id string optional ID of a parent frame to place the text inside.

position_x number optional X coordinate on the board (0 = center).

position_y number optional Y coordinate on the board (0 = center).

rotation number optional Rotation angle in degrees.

text_align string optional Text alignment. Valid values: left, center, right.

width number optional Width of the text box in board units.

miro_text_delete # Deletes a text item from a Miro board. 2 params ▾

Deletes a text item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the text item to delete.

miro_text_get # Retrieves details of a specific text item on a Miro board. 2 params ▾

Retrieves details of a specific text item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the text item.

miro_text_update # Updates the content, style, or position of a text item on a Miro board. 8 params ▾

Updates the content, style, or position of a text item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the text item to update.

color string optional Updated text color as hex code.

content string optional Updated text content.

font_size string optional Updated font size as a string number.

position_x number optional Updated X coordinate on the board.

position_y number optional Updated Y coordinate on the board.

width number optional Updated width in board units.

miro_token_info_get # Returns information about the current OAuth token including the authenticated user ID, name, team, and granted scopes. 0 params ▾

Returns information about the current OAuth token including the authenticated user ID, name, team, and granted scopes.
