Box connector

1. Install the SDK

   Node.js

   npm install @scalekit-sdk/node

   Python

   pip install scalekit

   Full SDK reference: Node.js | Python

2. Set your credentials

   Add your Scalekit credentials to your .env file. Find values in app.scalekit.com > Developers > API Credentials.

   .env

   SCALEKIT_ENVIRONMENT_URL=<your-environment-url>
   SCALEKIT_CLIENT_ID=<your-client-id>
   SCALEKIT_CLIENT_SECRET=<your-client-secret>

3. Set up the connector

   Register your Box credentials with Scalekit so it handles the token lifecycle. You do this once per environment.

   Dashboard setup steps

   Connect Box to Scalekit so your agent can manage files, folders, users, tasks, and more on behalf of your users. Box uses OAuth 2.0 — users authorize access through Box’s login flow, and Scalekit handles token storage and refresh automatically.

   You will need:

   • A Box developer account (free at developer.box.com)
   • Your Box OAuth app’s Client ID and Client Secret
   • The redirect URI from Scalekit to paste into Box

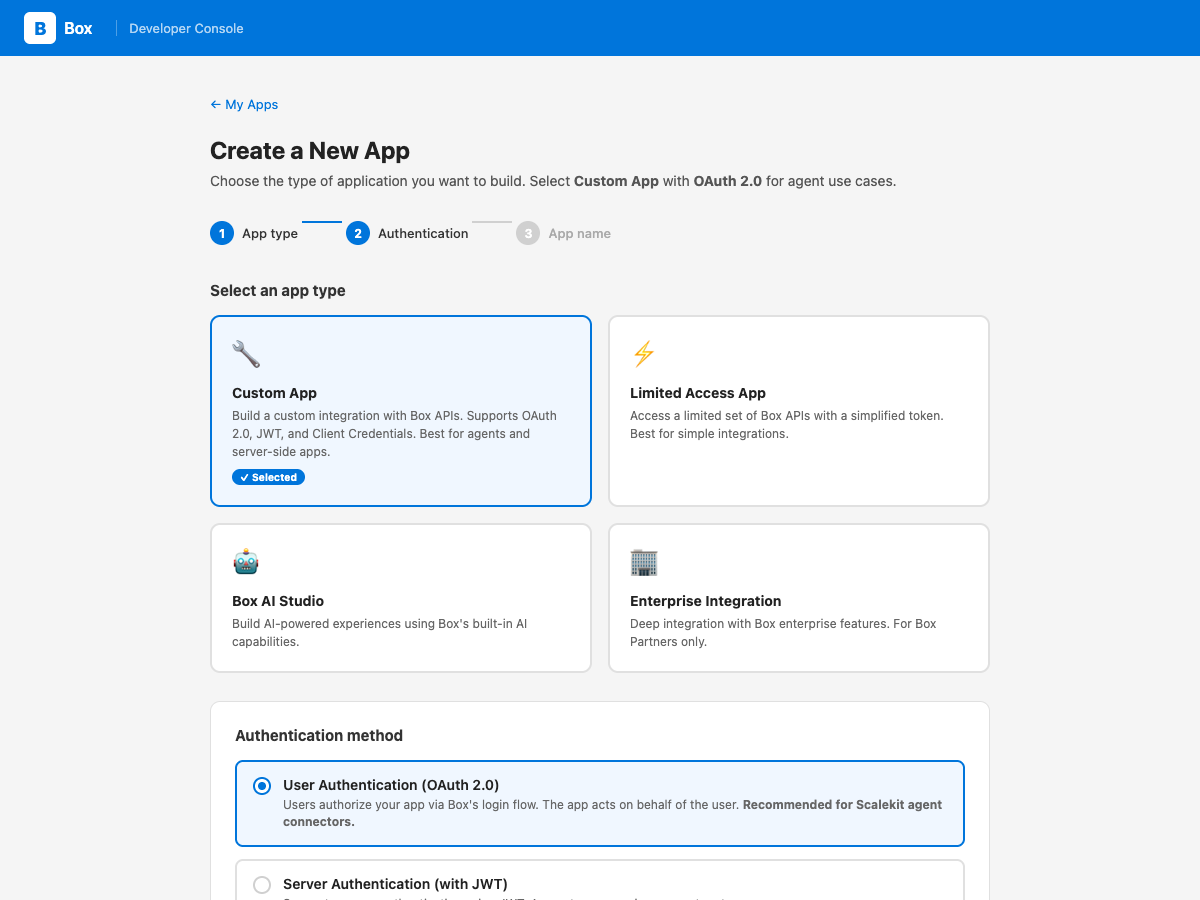

   1. Create a Box OAuth app

      • Go to the Box Developer Console and click Create New App.

      • Select Custom App as the app type.

      • Under authentication method, choose User Authentication (OAuth 2.0). This lets your agent act on behalf of each user who authorizes access.

      • Enter an app name (e.g. “My Agent App”) and click Create App.

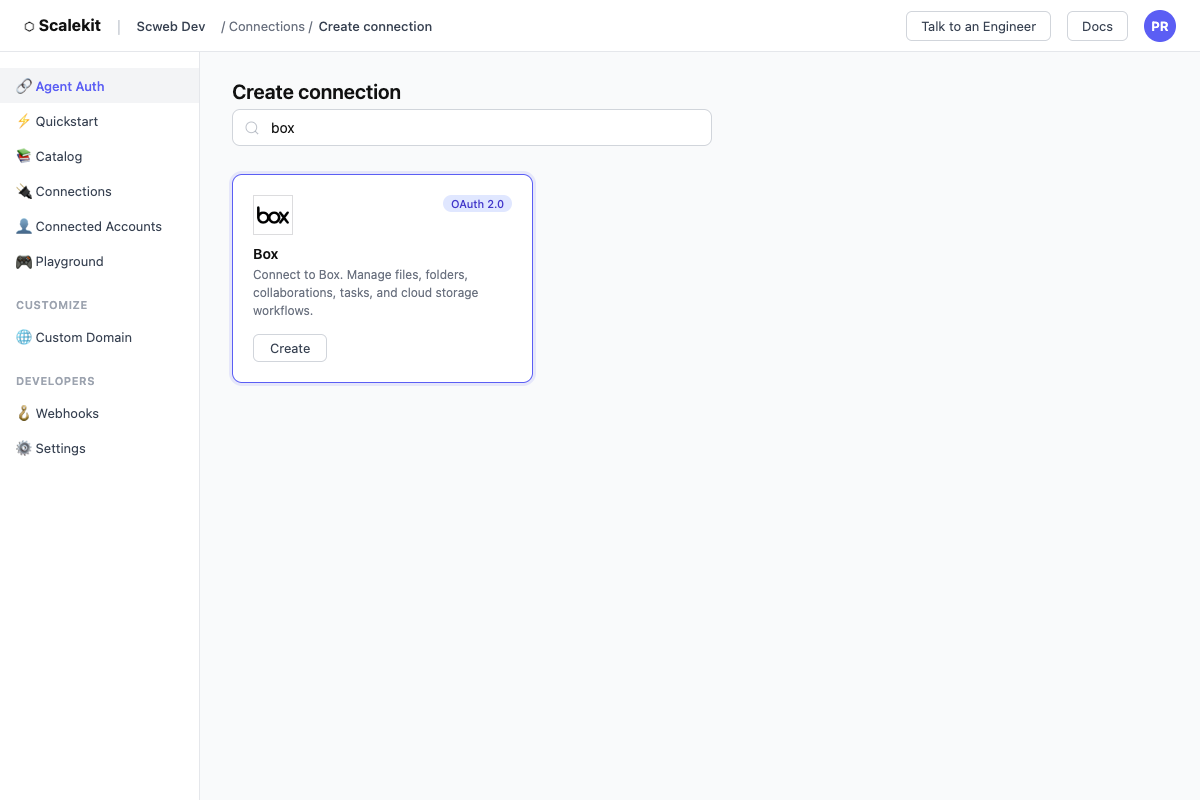

   2. Copy the redirect URI from Scalekit

      • In Scalekit dashboard, go to AgentKit > Connections > Create Connection.
      • Find Box and click Create.
      • Click Use your own credentials and copy the redirect URI. It looks like: https://<env>.scalekit.cloud/sso/v1/oauth/<conn_id>/callback

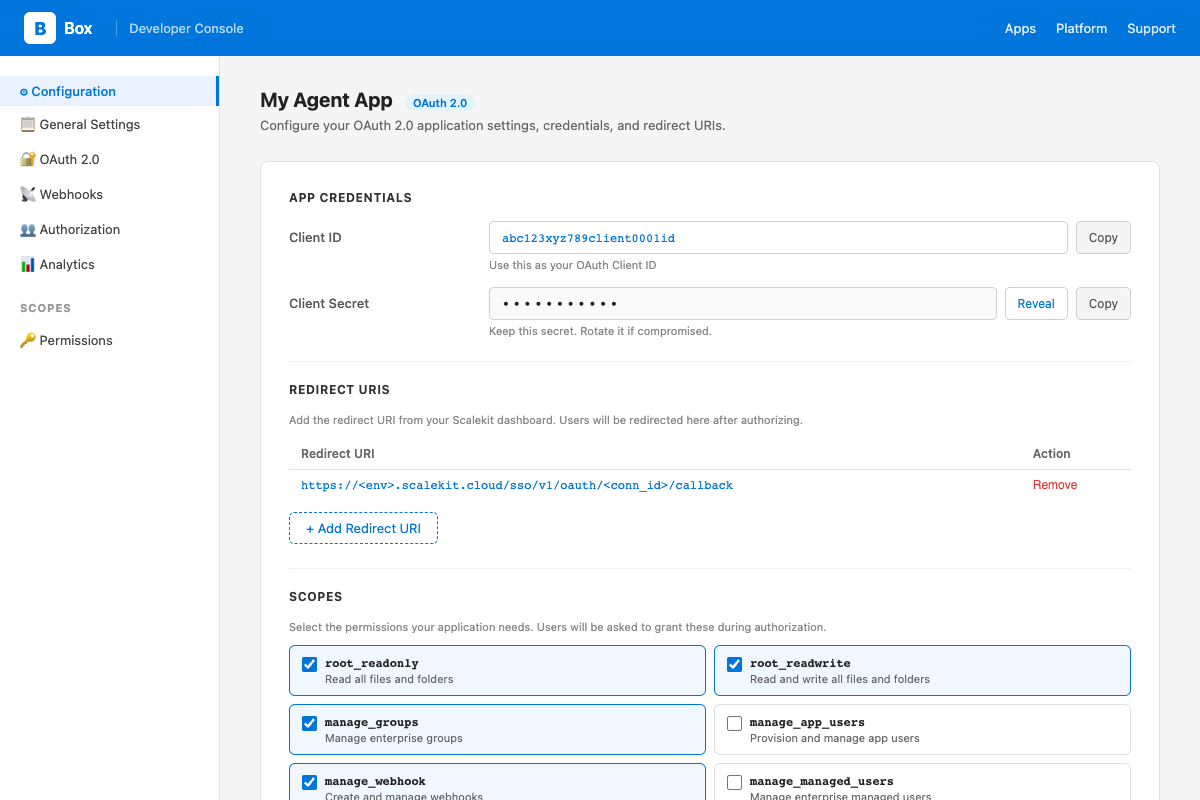

   3. Add the redirect URI to Box

      • In the Box Developer Console, open your app and go to the Configuration tab.
      • Under OAuth 2.0 Redirect URI, paste the redirect URI from Scalekit and click Save Changes.



   4. Select scopes for your app

      Still on the Configuration tab in Box, scroll down to Application Scopes and enable the permissions your agent needs:

      Scope	Required for
      root_readonly	Reading files and folders
      root_readwrite	Creating, updating, and deleting files/folders
      manage_groups	Creating and managing groups
      manage_webhook	Creating and managing webhooks
      manage_managed_users	Creating and managing enterprise users
      manage_enterprise_properties	Accessing enterprise events

      Minimum required scope

      Enable at least root_readonly and root_readwrite to use the majority of Box tools. Add other scopes only for the tools you actually use.

      Click Save Changes after selecting scopes.

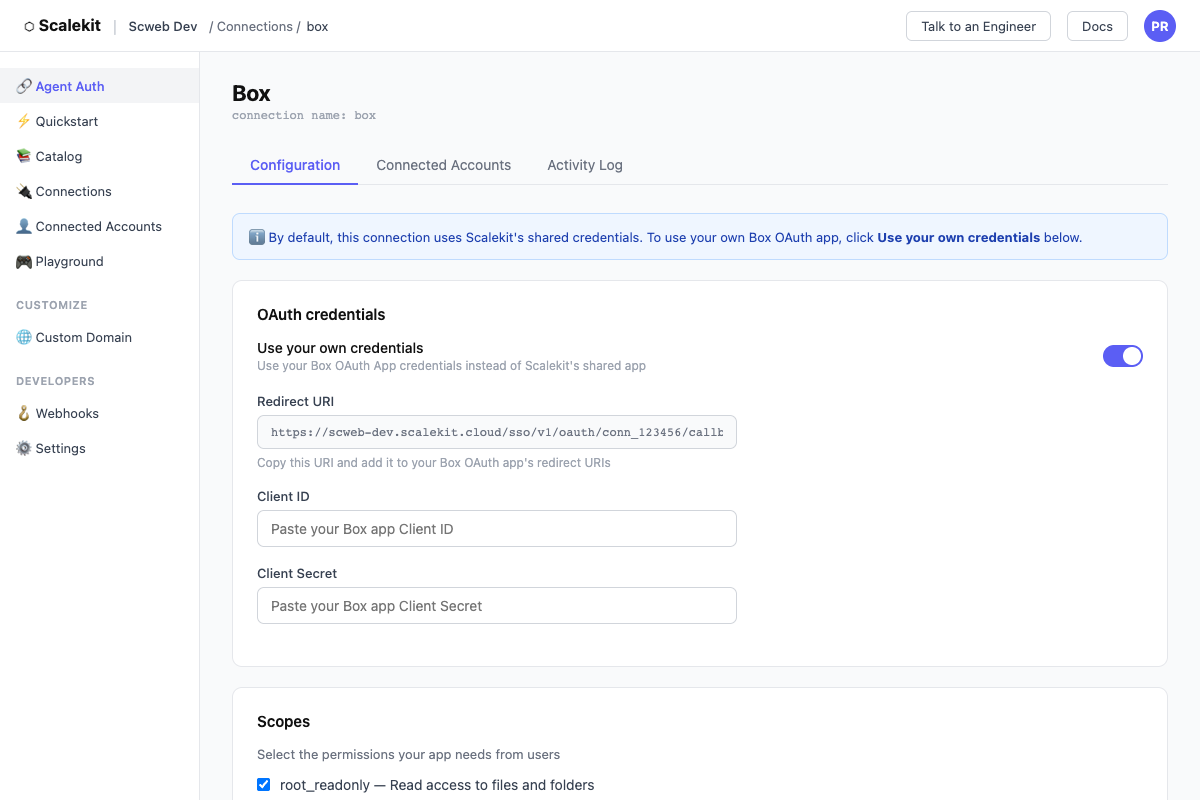

   5. Add credentials in Scalekit

      • In the Box Developer Console, open your app → Configuration tab.
      • Copy your Client ID and Client Secret.
      • In Scalekit dashboard, go to AgentKit > Connections, open the Box connection you created, and enter:
        • Client ID — from Box
        • Client Secret — from Box
        • Scopes — select the same scopes you enabled in Box (e.g. root_readonly, root_readwrite)



      • Click Save.

   6. Add a connected account for each user

      Each user who authorizes Box access becomes a connected account. During authorization, Box will show your app name and request the scopes you configured.

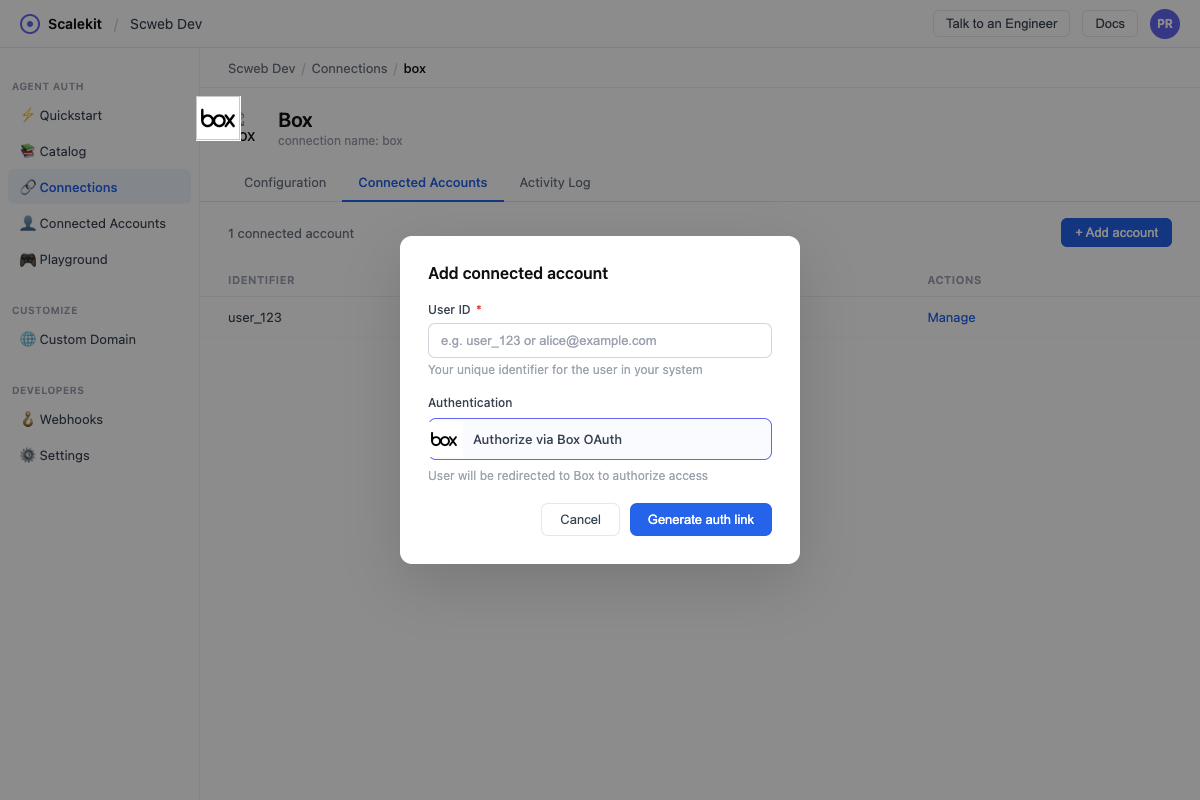

      Via dashboard (for testing)

      • In Scalekit dashboard, go to your Box connection → Connected Accounts → Add Account.
      • Enter a User ID (your internal identifier for this user, e.g. user_123).
      • Click Add — you will be redirected to Box’s OAuth consent screen to authorize.



      Via API (for production)

      In production, generate an authorization link and redirect your user to it:

      Node.js

      const { link } = await scalekit.actions.getAuthorizationLink({
        connectionName: 'box',
        identifier: 'user_123',
      });
      // Redirect your user to `link`

      Python

      link_response = scalekit_client.actions.get_authorization_link(
          connection_name="box",
          identifier="user_123",
      )
      # Redirect your user to link_response.link

      After the user authorizes, Scalekit stores their tokens. Your agent can then call Box tools on their behalf without any further redirects.

      Token refresh

      Scalekit automatically refreshes Box access tokens using the refresh token issued during authorization. If a user’s token ever expires, re-run the authorization link flow for that user.

4. Authorize and make your first call

   Node.js

   quickstart.ts

   import { ScalekitClient } from '@scalekit-sdk/node'
   import 'dotenv/config'

   const scalekit = new ScalekitClient(
     process.env.SCALEKIT_ENV_URL,
     process.env.SCALEKIT_CLIENT_ID,
     process.env.SCALEKIT_CLIENT_SECRET,
   )
   const actions = scalekit.actions

   const connector = 'box'
   const identifier = 'user_123'

   // Generate an authorization link for the user
   const { link } = await actions.getAuthorizationLink({ connectionName: connector, identifier })
   console.log('Authorize Box:', link)
   process.stdout.write('Press Enter after authorizing...')
   await new Promise(r => process.stdin.once('data', r))

   // Make your first call
   const result = await actions.executeTool({
     connector,
     identifier,
     toolName: 'box_collections_list',
     toolInput: {},
   })
   console.log(result)

   Python

   quickstart.py

   import os
   from scalekit.client import ScalekitClient
   from dotenv import load_dotenv
   load_dotenv()

   scalekit_client = ScalekitClient(
       env_url=os.getenv("SCALEKIT_ENV_URL"),
       client_id=os.getenv("SCALEKIT_CLIENT_ID"),
       client_secret=os.getenv("SCALEKIT_CLIENT_SECRET"),
   )
   actions = scalekit_client.actions

   connection_name = "box"
   identifier = "user_123"

   # Generate an authorization link for the user
   link_response = actions.get_authorization_link(
       connection_name=connection_name,
       identifier=identifier,
   )
   print("Authorize Box:", link_response.link)
   input("Press Enter after authorizing...")

   # Make your first call
   result = actions.execute_tool(
       tool_input={},
       tool_name="box_collections_list",
       connection_name=connection_name,
       identifier=identifier,
   )
   print(result)

What you can do

Connect this agent connector to let your agent:

• Get file representations, webhook, web link — Retrieves available representations for a file, such as thumbnails, PDFs, or extracted text
• List webhooks, users, user memberships — Retrieves all webhooks for the application
• Update webhook, web link, user — Updates a webhook’s address or triggers
• Delete webhook, web link, user — Removes a webhook
• Create webhook, web link, user — Creates a webhook to receive event notifications
• Restore trash folder, trash file — Restores a folder from the trash

Common workflows

Proxy API call

Node.js

// List files in the root folder
const result = await actions.request({
  connectionName: 'box',
  identifier: 'user_123',
  path: '/2.0/folders/0/items',
  method: 'GET',
});
console.log(result);

Python

# List files in the root folder
result = actions.request(
    connection_name="box",
    identifier="user_123",
    path="/2.0/folders/0/items",
    method="GET",
)
print(result)

File upload

Box file uploads use a different base URL (upload.box.com) that is not covered by the Scalekit proxy. To upload files, extract the user’s OAuth token from the connected account and call the Box upload API directly using https://upload.box.com/api/2.0/files/content.

List folder contents

Start here to discover file and folder IDs. Use "0" for the root folder.

Node.js

const result = await actions.executeTool({
  toolName: 'box_folder_items_list',
  connector: 'box',
  identifier: 'user_123',
  toolInput: {
    folder_id: '0',  // root folder
  },
});
// result.entries[] contains files and folders with their IDs

Python

result = actions.execute_tool(
    tool_name="box_folder_items_list",
    connection_name='box',
    identifier='user_123',
    tool_input={"folder_id": "0"},
)
# result["entries"] contains files and folders with their IDs

Get file details

Node.js

const file = await actions.executeTool({
  toolName: 'box_file_get',
  connector: 'box',
  identifier: 'user_123',
  toolInput: { file_id: '12345678' },
});

Python

file = actions.execute_tool(
    tool_name="box_file_get",
    connection_name='box',
    identifier='user_123',
    tool_input={"file_id": "12345678"},
)

Search Box

Node.js

const results = await actions.executeTool({
  toolName: 'box_search',
  connector: 'box',
  identifier: 'user_123',
  toolInput: {
    query: 'quarterly report',
    type: 'file',
    file_extensions: 'pdf,docx',
  },
});

Python

results = actions.execute_tool(
    tool_name="box_search",
    connection_name='box',
    identifier='user_123',
    tool_input={
        "query": "quarterly report",
        "type": "file",
        "file_extensions": "pdf,docx",
    },
)

Create a task on a file

Node.js

const task = await actions.executeTool({
  toolName: 'box_task_create',
  connector: 'box',
  identifier: 'user_123',
  toolInput: {
    file_id: '12345678',
    message: 'Please review this document',
    action: 'review',
    due_at: '2025-12-31T00:00:00Z',
  },
});
// task.id is the task ID — use it with box_task_assignment_create

Python

task = actions.execute_tool(
    tool_name="box_task_create",
    connection_name='box',
    identifier='user_123',
    tool_input={
        "file_id": "12345678",
        "message": "Please review this document",
        "action": "review",
        "due_at": "2025-12-31T00:00:00Z",
    },
)
# task["id"] is the task ID

Share a file

Node.js

const link = await actions.executeTool({
  toolName: 'box_shared_link_file_create',
  connector: 'box',
  identifier: 'user_123',
  toolInput: {
    file_id: '12345678',
    access: 'company',   // open | company | collaborators
    can_download: true,
  },
});

Python

link = actions.execute_tool(
    tool_name="box_shared_link_file_create",
    connection_name='box',
    identifier='user_123',
    tool_input={
        "file_id": "12345678",
        "access": "company",
        "can_download": True,
    },
)

Create a webhook

Webhooks require the manage_webhook scope. The triggers field is an array of event strings.

Node.js

const webhook = await actions.executeTool({
  toolName: 'box_webhook_create',
  connector: 'box',
  identifier: 'user_123',
  toolInput: {
    target_id: '0',
    target_type: 'folder',
    address: 'https://your-app.com/webhooks/box',
    triggers: ['FILE.UPLOADED', 'FILE.DELETED', 'FOLDER.CREATED'],
  },
});

Python

webhook = actions.execute_tool(
    tool_name="box_webhook_create",
    connection_name='box',
    identifier='user_123',
    tool_input={
        "target_id": "0",
        "target_type": "folder",
        "address": "https://your-app.com/webhooks/box",
        "triggers": ["FILE.UPLOADED", "FILE.DELETED", "FOLDER.CREATED"],
    },
)

Add a collaborator to a folder

Collaborations grant a user or group access to a specific file or folder. You need the user’s Box ID or email login.

Node.js

// First, get the user's Box ID using box_users_list or box_user_me_get
const collab = await actions.executeTool({
  toolName: 'box_collaboration_create',
  connector: 'box',
  identifier: 'user_123',
  toolInput: {
    item_id: 'FOLDER_ID',
    item_type: 'folder',
    accessible_by_id: 'USER_BOX_ID',
    accessible_by_type: 'user',
    role: 'editor',
  },
});
// To find the collaboration ID later, use box_folder_collaborations_list

Python

collab = actions.execute_tool(
    tool_name="box_collaboration_create",
    connection_name='box',
    identifier='user_123',
    tool_input={
        "item_id": "FOLDER_ID",
        "item_type": "folder",
        "accessible_by_id": "USER_BOX_ID",
        "accessible_by_type": "user",
        "role": "editor",
    },
)
# To find the collaboration ID later, use box_folder_collaborations_list

Collaboration ID vs User ID

The collaboration_id used by box_collaboration_get, box_collaboration_update, and box_collaboration_delete is not the same as the user’s Box user ID. Fetch the collaboration ID from box_folder_collaborations_list or box_file_collaborations_list after creating the collaboration.

Tool list

Use the exact tool names from the Tool list below when you call execute_tool. If you’re not sure which name to use, list the tools available for the current user first.

box_collaboration_create # Grants a user or group access to a file or folder. 8 params ▾

Grants a user or group access to a file or folder.

Name Type Required Description

accessible_by_id string required ID of the user or group to collaborate with.

accessible_by_type string required Type: user or group.

item_id string required ID of the file or folder.

item_type string required Type of item: file or folder.

role string required Collaboration role: viewer, previewer, uploader, previewer_uploader, viewer_uploader, co-owner, or editor.

can_view_path string optional Allow user to see path to item (true/false).

expires_at string optional Expiry date in ISO 8601 format.

notify string optional Notify collaborator via email (true/false).

box_collaboration_delete # Removes a collaboration, revoking user or group access. 1 param ▾

Removes a collaboration, revoking user or group access.

Name Type Required Description

collaboration_id string required ID of the collaboration to delete.

box_collaboration_get # Retrieves details of a specific collaboration. 3 params ▾

Retrieves details of a specific collaboration.

Name Type Required Description

collaboration_id string required ID of the collaboration.

fields string optional Comma-separated list of fields to return.

xero_tenant_id string optional Xero tenant (organisation) ID.

box_collaboration_update # Updates the role or status of a collaboration. 5 params ▾

Updates the role or status of a collaboration.

Name Type Required Description

collaboration_id string required ID of the collaboration.

can_view_path boolean optional Allow user to see path to item.

expires_at string optional New expiry date in ISO 8601 format.

role string optional New collaboration role.

status string optional Collaboration status: accepted or rejected.

box_collection_items_list # Retrieves the items in a collection (e.g. Favorites). 4 params ▾

Retrieves the items in a collection (e.g. Favorites).

Name Type Required Description

collection_id string required ID of the collection.

fields string optional Comma-separated list of fields to return.

limit integer optional Max results.

offset integer optional Pagination offset.

box_collections_list # Retrieves all collections (e.g. Favorites) for the user. 3 params ▾

Retrieves all collections (e.g. Favorites) for the user.

Name Type Required Description

fields string optional Comma-separated list of fields to return.

limit integer optional Max results.

offset integer optional Pagination offset.

box_comment_create # Adds a comment to a file. 4 params ▾

Adds a comment to a file.

Name Type Required Description

item_id string required ID of the file to comment on.

item_type string required Type of item: file or comment.

message string required Text of the comment.

tagged_message string optional Comment text with @mentions using @[user_id:user_name] syntax.

box_comment_delete # Removes a comment. 1 param ▾

Removes a comment.

Name Type Required Description

comment_id string required ID of the comment to delete.

box_comment_get # Retrieves a comment. 2 params ▾

Retrieves a comment.

Name Type Required Description

comment_id string required ID of the comment.

fields string optional Comma-separated list of fields to return.

box_comment_update # Updates the text of a comment. 2 params ▾

Updates the text of a comment.

Name Type Required Description

comment_id string required ID of the comment to update.

message string required New text for the comment.

box_events_list # Retrieves events from the event stream. 6 params ▾

Retrieves events from the event stream.

Name Type Required Description

created_after string optional Return events after this date (ISO 8601).

created_before string optional Return events before this date (ISO 8601).

event_type string optional Comma-separated list of event types to filter.

limit integer optional Max events to return.

stream_position string optional Pagination position from a previous response.

stream_type string optional Event stream type: all, changes, sync, or admin_logs.

box_file_collaborations_list # Retrieves all collaborations on a file. 2 params ▾

Retrieves all collaborations on a file.

Name Type Required Description

file_id string required ID of the file.

fields string optional Comma-separated list of fields to return.

box_file_comments_list # Retrieves all comments on a file. 2 params ▾

Retrieves all comments on a file.

Name Type Required Description

file_id string required ID of the file.

fields string optional Comma-separated list of fields to return.

box_file_copy # Creates a copy of a file in a specified folder. 3 params ▾

Creates a copy of a file in a specified folder.

Name Type Required Description

file_id string required ID of the file to copy.

parent_id string required ID of the destination folder.

name string optional New name for the copied file (optional).

box_file_delete # Moves a file to the trash. 1 param ▾

Moves a file to the trash.

Name Type Required Description

file_id string required ID of the file to delete.

box_file_get # Retrieves detailed information about a file. 2 params ▾

Retrieves detailed information about a file.

Name Type Required Description

file_id string required ID of the file.

fields string optional Comma-separated list of fields to return.

box_file_metadata_create # Applies metadata to a file. 4 params ▾

Applies metadata to a file.

Name Type Required Description

data_json string required JSON object of metadata fields and values.

file_id string required ID of the file.

scope string required Scope: global or enterprise.

template_key string required Metadata template key.

box_file_metadata_delete # Removes a metadata instance from a file. 3 params ▾

Removes a metadata instance from a file.

Name Type Required Description

file_id string required ID of the file.

scope string required Scope: global or enterprise.

template_key string required Metadata template key.

box_file_metadata_get # Retrieves a specific metadata instance on a file. 3 params ▾

Retrieves a specific metadata instance on a file.

Name Type Required Description

file_id string required ID of the file.

scope string required Scope: global or enterprise.

template_key string required Metadata template key.

box_file_metadata_list # Retrieves all metadata instances attached to a file. 1 param ▾

Retrieves all metadata instances attached to a file.

Name Type Required Description

file_id string required ID of the file.

box_file_representations_get # Retrieves available representations for a file, such as thumbnails, PDFs, or extracted text. Use the x_rep_hints parameter to request specific formats. 2 params ▾

Retrieves available representations for a file, such as thumbnails, PDFs, or extracted text. Use the x_rep_hints parameter to request specific formats.

Name Type Required Description

file_id string required ID of the file.

x_rep_hints string required Hints for which representations to generate, e.g. [pdf][extracted_text][jpg?dimensions=320x320].

box_file_tasks_list # Retrieves all tasks associated with a file. 1 param ▾

Retrieves all tasks associated with a file.

Name Type Required Description

file_id string required ID of the file.

box_file_thumbnail_get # Retrieves a thumbnail image for a file. 4 params ▾

Retrieves a thumbnail image for a file.

Name Type Required Description

extension string required Thumbnail format: jpg or png.

file_id string required ID of the file.

min_height integer optional Minimum height of the thumbnail in pixels.

min_width integer optional Minimum width of the thumbnail in pixels.

box_file_update # Updates a file's name, description, tags, or moves it to another folder. 5 params ▾

Updates a file's name, description, tags, or moves it to another folder.

Name Type Required Description

file_id string required ID of the file to update.

description string optional New description for the file.

name string optional New name for the file.

parent_id string optional ID of the folder to move the file into.

tags string optional Comma-separated list of tags. Pass as JSON string.

box_file_versions_list # Retrieves all previous versions of a file. 1 param ▾

Retrieves all previous versions of a file.

Name Type Required Description

file_id string required ID of the file.

box_folder_collaborations_list # Retrieves all collaborations on a folder. 2 params ▾

Retrieves all collaborations on a folder.

Name Type Required Description

folder_id string required ID of the folder.

fields string optional Comma-separated list of fields to return.

box_folder_copy # Creates a copy of a folder and its contents. 3 params ▾

Creates a copy of a folder and its contents.

Name Type Required Description

folder_id string required ID of the folder to copy.

parent_id string required ID of the destination folder.

name string optional New name for the copied folder (optional).

box_folder_create # Creates a new folder inside a parent folder. 3 params ▾

Creates a new folder inside a parent folder.

Name Type Required Description

name string required Name of the new folder.

parent_id string required ID of the parent folder. Use '0' for root.

fields string optional Comma-separated list of fields to return.

box_folder_delete # Moves a folder to the trash. 2 params ▾

Moves a folder to the trash.

Name Type Required Description

folder_id string required ID of the folder to delete.

recursive string optional Delete non-empty folders recursively (true/false).

box_folder_get # Retrieves a folder's details and its items. 6 params ▾

Retrieves a folder's details and its items.

Name Type Required Description

folder_id string required ID of the folder. Use '0' for root.

direction string optional Sort direction: ASC or DESC.

fields string optional Comma-separated list of fields to return.

limit integer optional Max items to return (max 1000).

offset integer optional Pagination offset.

sort string optional Sort order: id, name, date, or size.

box_folder_items_list # Retrieves a paginated list of items in a folder. 6 params ▾

Retrieves a paginated list of items in a folder.

Name Type Required Description

folder_id string required ID of the folder. Use '0' for root.

direction string optional ASC or DESC.

fields string optional Comma-separated list of fields to return.

limit integer optional Max items to return (max 1000).

offset integer optional Pagination offset.

sort string optional Sort field: id, name, date, or size.

box_folder_metadata_list # Retrieves all metadata instances on a folder. 1 param ▾

Retrieves all metadata instances on a folder.

Name Type Required Description

folder_id string required ID of the folder.

box_folder_update # Updates a folder's name, description, or moves it. 4 params ▾

Updates a folder's name, description, or moves it.

Name Type Required Description

folder_id string required ID of the folder to update.

description string optional New description for the folder.

name string optional New name for the folder.

parent_id string optional ID of the new parent folder to move into.

box_group_create # Creates a new group in the enterprise. 5 params ▾

Creates a new group in the enterprise.

Name Type Required Description

name string required Name of the group.

description string optional Description of the group.

invitability_level string optional Who can invite to group: admins_only, admins_and_members, all_managed_users.

member_viewability_level string optional Who can view group members: admins_only, admins_and_members, all_managed_users.

provenance string optional Identifier to distinguish manually vs synced groups.

box_group_delete # Permanently deletes a group. 1 param ▾

Permanently deletes a group.

Name Type Required Description

group_id string required ID of the group to delete.

box_group_get # Retrieves information about a group. 2 params ▾

Retrieves information about a group.

Name Type Required Description

group_id string required ID of the group.

fields string optional Comma-separated list of fields to return.

box_group_members_list # Retrieves all members of a group. 3 params ▾

Retrieves all members of a group.

Name Type Required Description

group_id string required ID of the group.

limit integer optional Max results.

offset integer optional Pagination offset.

box_group_membership_add # Adds a user to a group. 3 params ▾

Adds a user to a group.

Name Type Required Description

group_id string required ID of the group.

user_id string required ID of the user to add.

role string optional Role in the group: member or admin.

box_group_membership_get # Retrieves a specific group membership. 2 params ▾

Retrieves a specific group membership.

Name Type Required Description

group_membership_id string required ID of the group membership.

fields string optional Comma-separated list of fields to return.

box_group_membership_remove # Removes a user from a group. 1 param ▾

Removes a user from a group.

Name Type Required Description

group_membership_id string required ID of the group membership to remove.

box_group_membership_update # Updates a user's role in a group. 2 params ▾

Updates a user's role in a group.

Name Type Required Description

group_membership_id string required ID of the membership to update.

role string optional New role: member or admin.

box_group_update # Updates a group's properties. 5 params ▾

Updates a group's properties.

Name Type Required Description

group_id string required ID of the group to update.

description string optional New description.

invitability_level string optional Who can invite: admins_only, admins_and_members, all_managed_users.

member_viewability_level string optional Who can view members.

name string optional New name for the group.

box_groups_list # Retrieves all groups in the enterprise. 4 params ▾

Retrieves all groups in the enterprise.

Name Type Required Description

fields string optional Comma-separated list of fields to return.

filter_term string optional Filter groups by name.

limit integer optional Max results.

offset integer optional Pagination offset.

box_metadata_template_get # Retrieves a metadata template schema. 2 params ▾

Retrieves a metadata template schema.

Name Type Required Description

scope string required Scope of the template: global or enterprise.

template_key string required Key of the metadata template.

box_metadata_templates_list # Retrieves all metadata templates for the enterprise. 2 params ▾

Retrieves all metadata templates for the enterprise.

Name Type Required Description

limit integer optional Max results.

marker string optional Pagination marker.

box_recent_items_list # Retrieves files and folders accessed recently. 3 params ▾

Retrieves files and folders accessed recently.

Name Type Required Description

fields string optional Comma-separated list of fields to return.

limit integer optional Max results.

marker string optional Pagination marker.

box_search # Searches files, folders, and web links in Box. 12 params ▾

Searches files, folders, and web links in Box.

Name Type Required Description

query string required Search query string.

ancestor_folder_ids string optional Comma-separated folder IDs to search within.

content_types string optional Comma-separated content types: name, description, tag, comments, file_content.

created_at_range string optional Date range in ISO 8601: 2024-01-01T00:00:00Z,2024-12-31T23:59:59Z

fields string optional Comma-separated list of fields to return.

file_extensions string optional Comma-separated file extensions to filter.

limit integer optional Max results (max 200).

offset integer optional Pagination offset.

owner_user_ids string optional Comma-separated user IDs.

scope string optional Search scope: user_content or enterprise_content.

type string optional Filter by type: file, folder, or web_link.

updated_at_range string optional Date range for last updated.

box_shared_link_file_create # Creates or updates a shared link for a file. 6 params ▾

Creates or updates a shared link for a file.

Name Type Required Description

file_id string required ID of the file.

access string optional Shared link access: open, company, or collaborators.

can_download boolean optional Allow download (true/false).

can_preview boolean optional Allow preview (true/false).

password string optional Password to protect the shared link.

unshared_at string optional Expiry date in ISO 8601 format.

box_shared_link_folder_create # Creates or updates a shared link for a folder. 5 params ▾

Creates or updates a shared link for a folder.

Name Type Required Description

folder_id string required ID of the folder.

access string optional Shared link access: open, company, or collaborators.

can_download boolean optional Allow download (true/false).

password string optional Password to protect the shared link.

unshared_at string optional Expiry date in ISO 8601 format.

box_task_assignment_create # Assigns a task to a user. 3 params ▾

Assigns a task to a user.

Name Type Required Description

task_id string required ID of the task to assign.

user_id string optional ID of the user to assign the task to.

user_login string optional Email login of the user (alternative to user_id).

box_task_assignment_delete # Removes a task assignment from a user. 1 param ▾

Removes a task assignment from a user.

Name Type Required Description

task_assignment_id string required ID of the task assignment to remove.

box_task_assignment_get # Retrieves a specific task assignment. 1 param ▾

Retrieves a specific task assignment.

Name Type Required Description

task_assignment_id string required ID of the task assignment.

box_task_assignment_update # Updates a task assignment (complete, approve, or reject). 3 params ▾

Updates a task assignment (complete, approve, or reject).

Name Type Required Description

task_assignment_id string required ID of the task assignment.

message string optional Optional message/comment for the resolution.

resolution_state string optional Resolution state: completed, incomplete, approved, or rejected.

box_task_assignments_list # Retrieves all assignments for a task. 1 param ▾

Retrieves all assignments for a task.

Name Type Required Description

task_id string required ID of the task.

box_task_create # Creates a task on a file. 5 params ▾

Creates a task on a file.

Name Type Required Description

file_id string required ID of the file to attach the task to.

action string optional Action: review or complete.

completion_rule string optional Completion rule: all_assignees or any_assignee.

due_at string optional Due date in ISO 8601 format.

message string optional Task message/description.

box_task_delete # Removes a task from a file. 1 param ▾

Removes a task from a file.

Name Type Required Description

task_id string required ID of the task to delete.

box_task_get # Retrieves a task's details. 1 param ▾

Retrieves a task's details.

Name Type Required Description

task_id string required ID of the task.

box_task_update # Updates a task's message, due date, or completion rule. 5 params ▾

Updates a task's message, due date, or completion rule.

Name Type Required Description

task_id string required ID of the task to update.

action string optional New action: review or complete.

completion_rule string optional New completion rule: all_assignees or any_assignee.

due_at string optional New due date in ISO 8601 format.

message string optional New message for the task.

box_trash_file_permanently_delete # Permanently deletes a trashed file. 1 param ▾

Permanently deletes a trashed file.

Name Type Required Description

file_id string required ID of the trashed file.

box_trash_file_restore # Restores a file from the trash. 3 params ▾

Restores a file from the trash.

Name Type Required Description

file_id string required ID of the trashed file.

name string optional New name if original name is taken.

parent_id string optional Parent folder ID if original is unavailable.

box_trash_folder_permanently_delete # Permanently deletes a trashed folder. 1 param ▾

Permanently deletes a trashed folder.

Name Type Required Description

folder_id string required ID of the trashed folder.

box_trash_folder_restore # Restores a folder from the trash. 3 params ▾

Restores a folder from the trash.

Name Type Required Description

folder_id string required ID of the trashed folder.

name string optional New name if original is taken.

parent_id string optional New parent folder ID if original is unavailable.

box_trash_list # Retrieves items in the user's trash. 5 params ▾

Retrieves items in the user's trash.

Name Type Required Description

direction string optional Sort direction: ASC or DESC.

fields string optional Comma-separated list of fields to return.

limit integer optional Max results.

offset integer optional Pagination offset.

sort string optional Sort field: name, date, or size.

box_user_create # Creates a new user in the enterprise. 5 params ▾

Creates a new user in the enterprise.

Name Type Required Description

name string required Full name of the user.

is_platform_access_only boolean optional Set true for app users (no login).

login string optional Email address (login) for managed users.

role string optional User role: user or coadmin.

space_amount integer optional Storage quota in bytes (-1 for unlimited).

box_user_delete # Removes a user from the enterprise. 3 params ▾

Removes a user from the enterprise.

Name Type Required Description

user_id string required ID of the user to delete.

force string optional Force deletion even if user owns content (true/false).

notify string optional Notify user via email (true/false).

box_user_get # Retrieves information about a specific user. 2 params ▾

Retrieves information about a specific user.

Name Type Required Description

user_id string required ID of the user.

fields string optional Comma-separated list of fields to return.

box_user_me_get # Retrieves information about the currently authenticated user. 1 param ▾

Retrieves information about the currently authenticated user.

Name Type Required Description

fields string optional Comma-separated list of fields to return.

box_user_memberships_list # Retrieves all group memberships for a user. 3 params ▾

Retrieves all group memberships for a user.

Name Type Required Description

user_id string required ID of the user.

limit integer optional Max results.

offset integer optional Pagination offset.

box_user_update # Updates a user's properties in the enterprise. 6 params ▾

Updates a user's properties in the enterprise.

Name Type Required Description

user_id string required ID of the user to update.

name string optional New full name.

role string optional New role: user or coadmin.

space_amount integer optional Storage quota in bytes.

status string optional New status: active, inactive, or cannot_delete_edit.

tracking_codes string optional Tracking codes as JSON array string.

box_users_list # Retrieves all users in the enterprise. 5 params ▾

Retrieves all users in the enterprise.

Name Type Required Description

fields string optional Comma-separated list of fields to return.

filter_term string optional Filter users by name or login.

limit integer optional Max users to return.

offset integer optional Pagination offset.

user_type string optional Filter by type: all, managed, or external.

box_web_link_create # Creates a web link (bookmark) inside a folder. 4 params ▾

Creates a web link (bookmark) inside a folder.

Name Type Required Description

parent_id string required ID of the parent folder.

url string required URL of the web link.

description string optional Description of the web link.

name string optional Name for the web link.

box_web_link_delete # Removes a web link. 1 param ▾

Removes a web link.

Name Type Required Description

web_link_id string required ID of the web link to delete.

box_web_link_get # Retrieves a web link's details. 2 params ▾

Retrieves a web link's details.

Name Type Required Description

web_link_id string required ID of the web link.

fields string optional Comma-separated list of fields to return.

box_web_link_update # Updates a web link's URL, name, or description. 5 params ▾

Updates a web link's URL, name, or description.

Name Type Required Description

web_link_id string required ID of the web link to update.

description string optional New description.

name string optional New name.

parent_id string optional New parent folder ID.

url string optional New URL.

box_webhook_create # Creates a webhook to receive event notifications. 4 params ▾

Creates a webhook to receive event notifications.

Name Type Required Description

address string required HTTPS URL to receive webhook notifications.

target_id string required ID of the file or folder to watch.

target_type string required Type of target: file or folder.

triggers array required Array of trigger events, e.g. ["FILE.UPLOADED","FILE.DELETED"].

box_webhook_delete # Removes a webhook. 1 param ▾

Removes a webhook.

Name Type Required Description

webhook_id string required ID of the webhook to delete.

box_webhook_get # Retrieves a webhook's details. 1 param ▾

Retrieves a webhook's details.

Name Type Required Description

webhook_id string required ID of the webhook.

box_webhook_update # Updates a webhook's address or triggers. 5 params ▾

Updates a webhook's address or triggers.

Name Type Required Description

webhook_id string required ID of the webhook to update.

address string optional New HTTPS URL for notifications.

target_id string optional New target ID.

target_type string optional New target type: file or folder.

triggers array optional New array of trigger events, e.g. ["FILE.UPLOADED","FILE.DELETED"].

box_webhooks_list # Retrieves all webhooks for the application. 2 params ▾

Retrieves all webhooks for the application.

Name Type Required Description

limit integer optional Max results.

marker string optional Pagination marker.
